SOUND DIFFUSOR WITH 3D CONCRETE PRINT

Project Year : 2019.03 ~ 2019.06         Team Project : Lee Seungwon, Kim Gyeongryul       Project Specification : Product

             Sound Diffusor is experimental project for finding sub-optimal shape of acustic performance in particular floor shape and testing 3d concrete printing fabrication technique.

Finding Suboptimal Design Alternatives

For acoustic performence simulation, we utilzed acoustic ray and grasshopper-galapagos tools. We selected one of well-optimized item and soothed the edges.

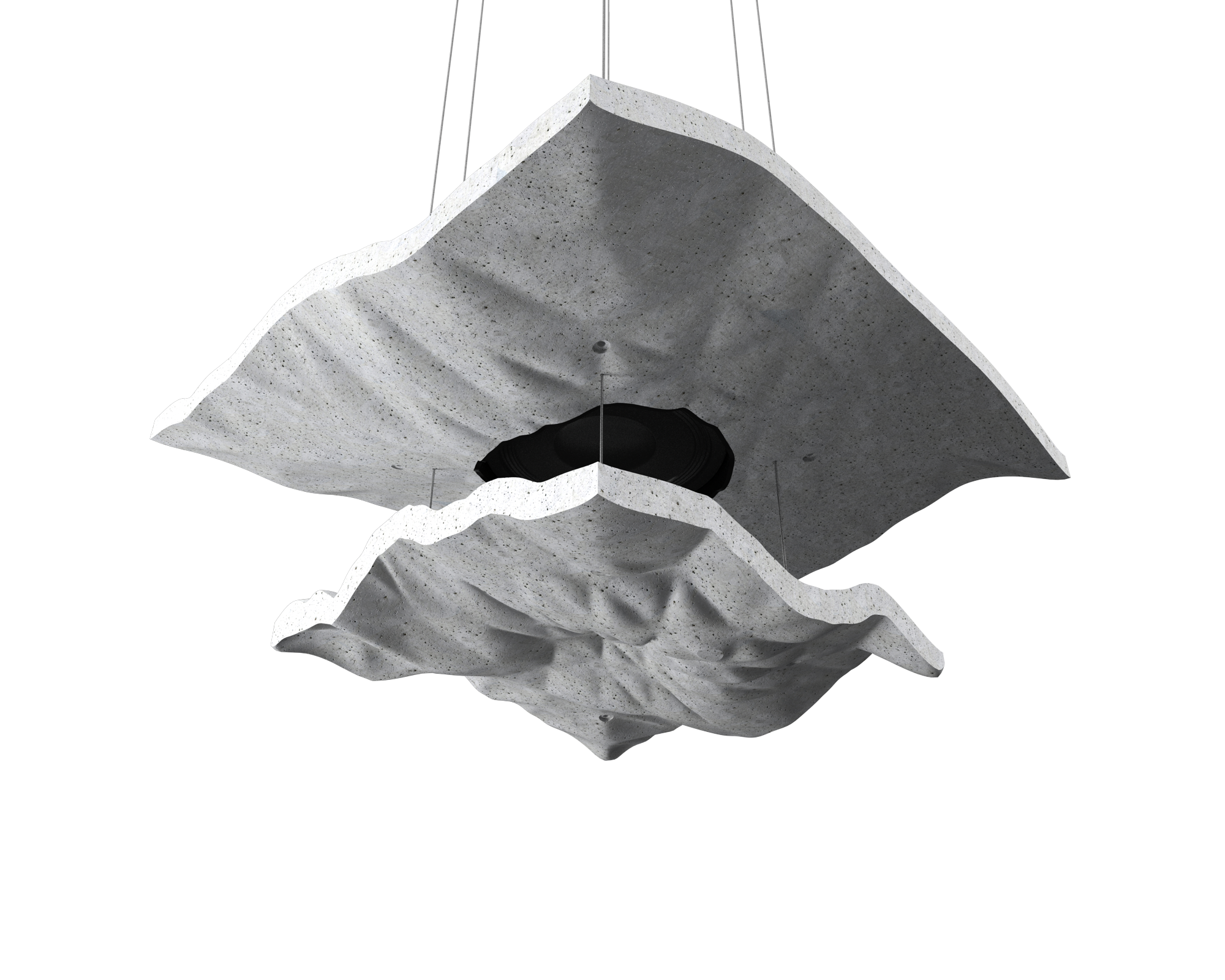

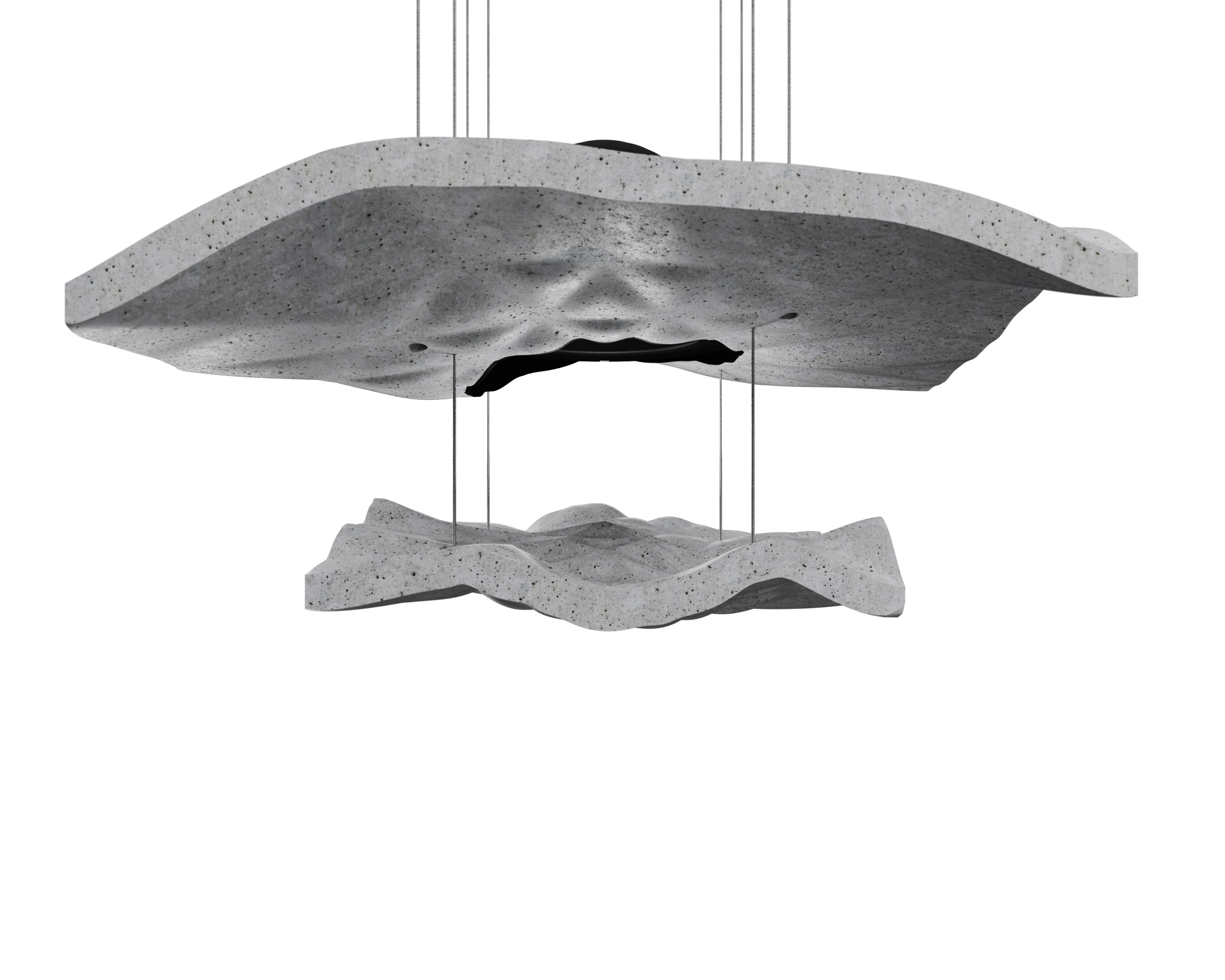

Speaker Mount

Soothed sub-optimal shape





FABRICATION SEQUENCE

01 Mix Material

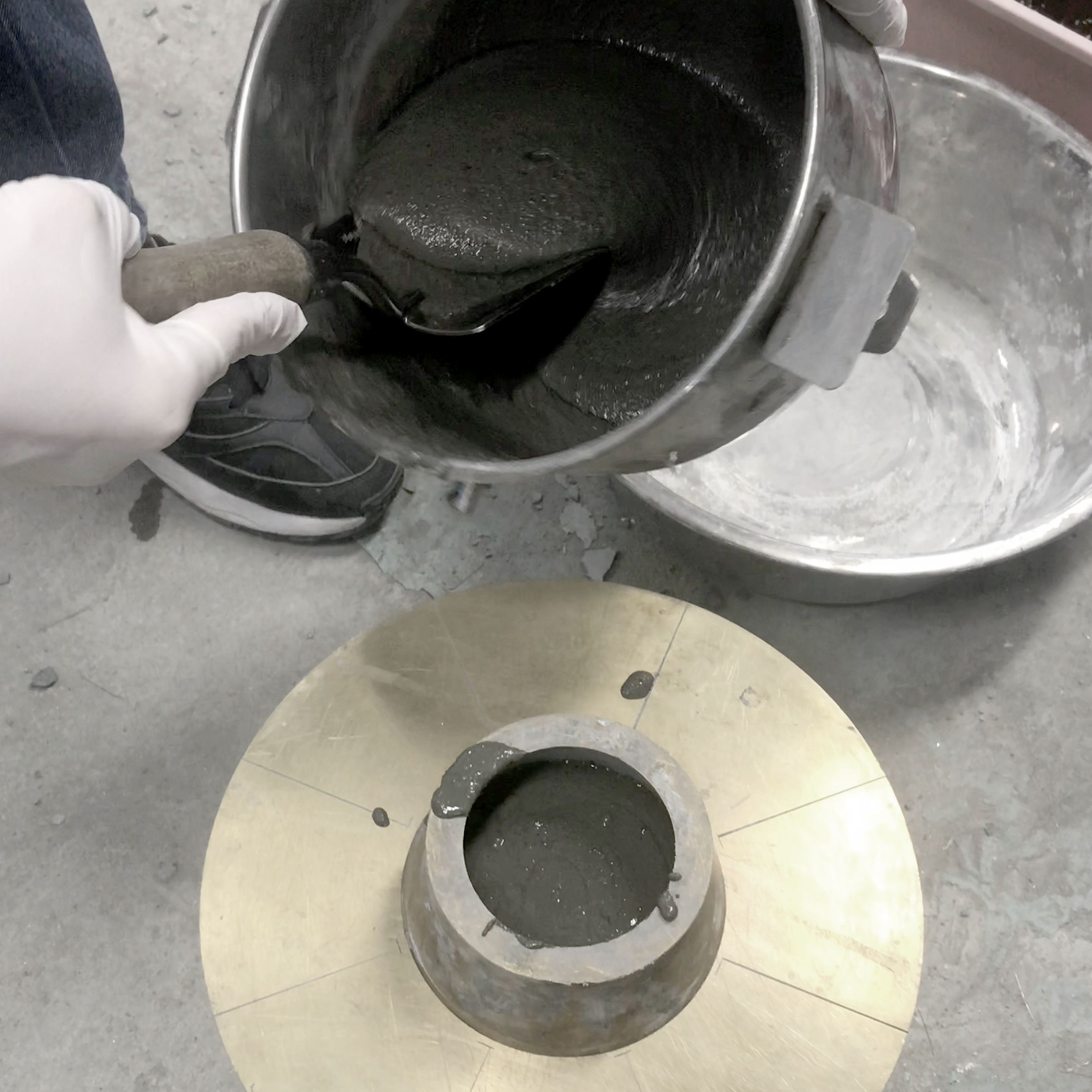

02 Flow Test_1

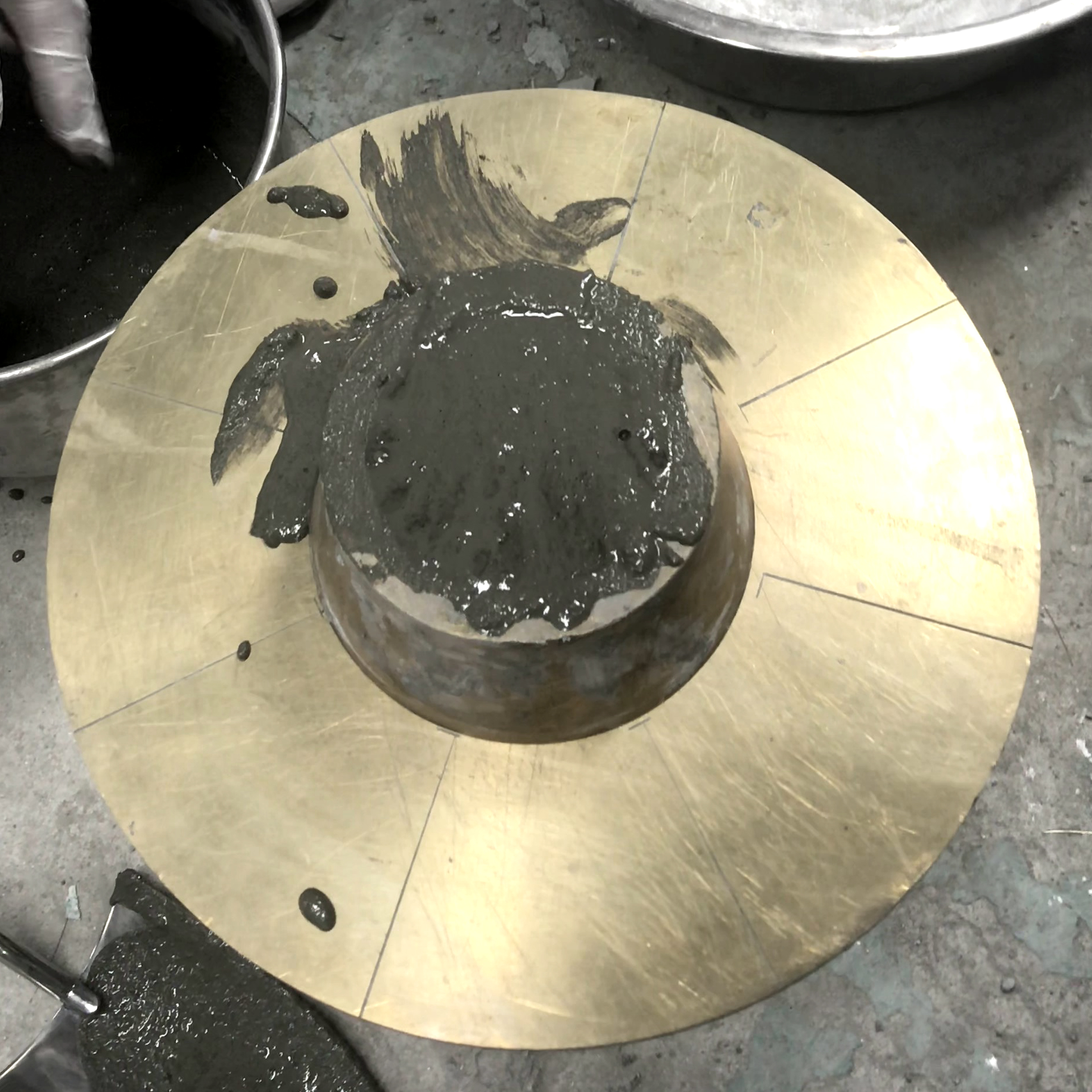

03 Flow Test_2

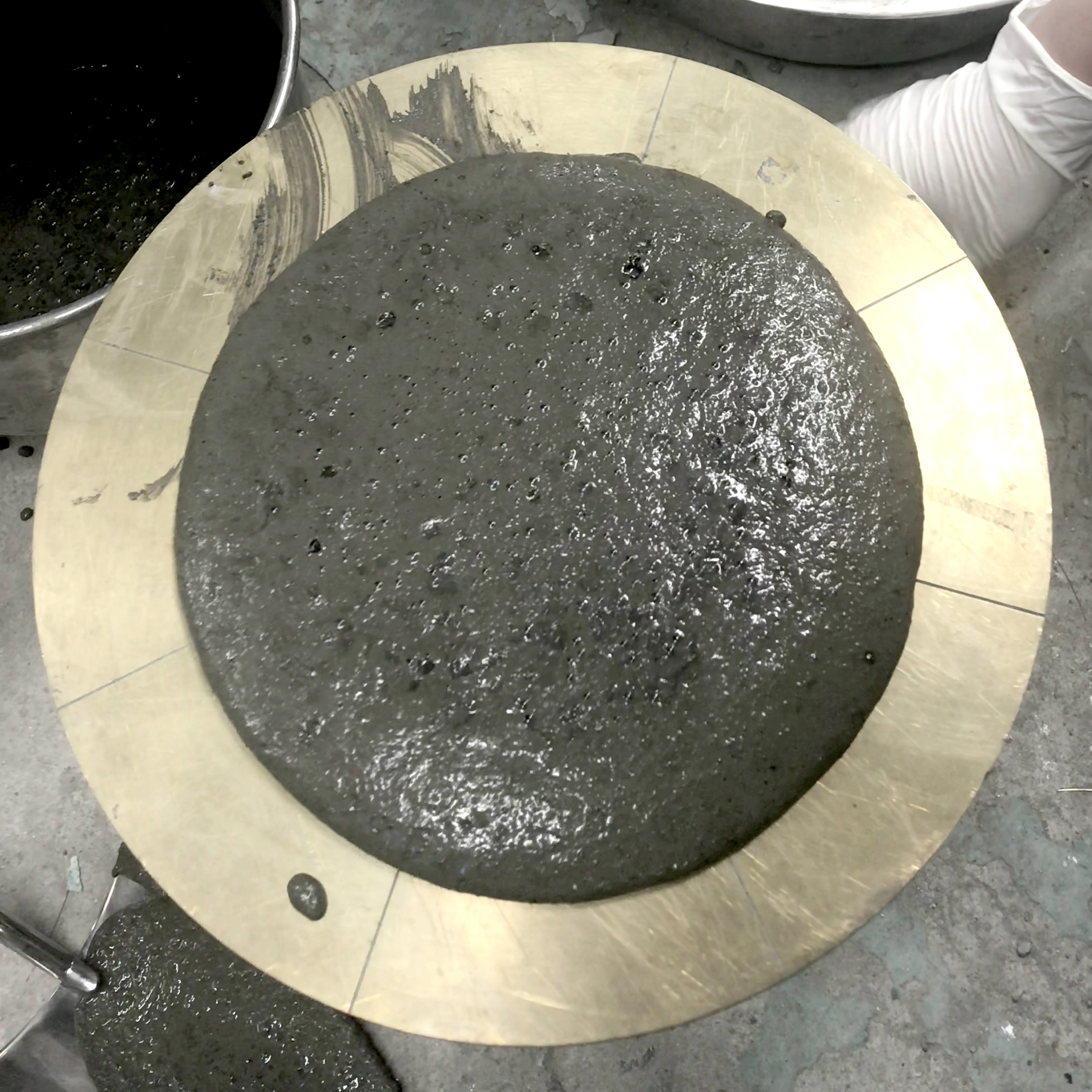

04 Flow Test_3
05 Dry Mixing

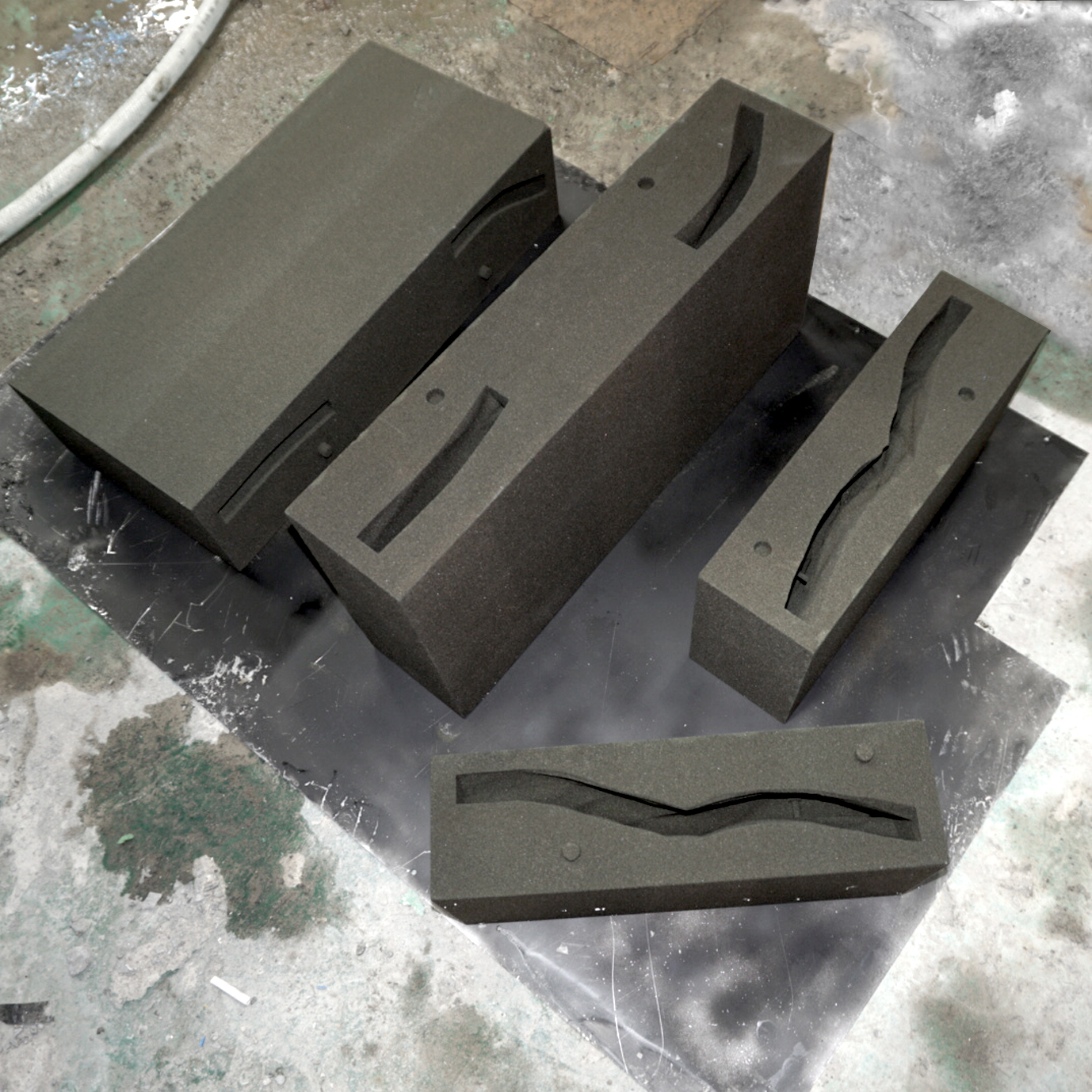

06 Mould
07 Mixing
08 Casting
09 Curing
10 Demold


Fully Fully assembled model
